February 1, 2016 at 11:54 am #473
Bill B
Keymaster

To make the ESP01 or other in that family work, you will need to reflash the FW (you cannot configure the standard FW to work as it doesn’t support a ‘pass through’ mode on the serial*

Download this image http://www.communistech.com/files/esp8266/firmware-1.0.0.bin You will need to set Telem2 serial port on the Pixhawk to 921600 i.e. SERIAL2_BAUD = 921

Updated: there is a newer version http://www.communistech.com/files/esp8266/firmware-1.0.11.bin available now.

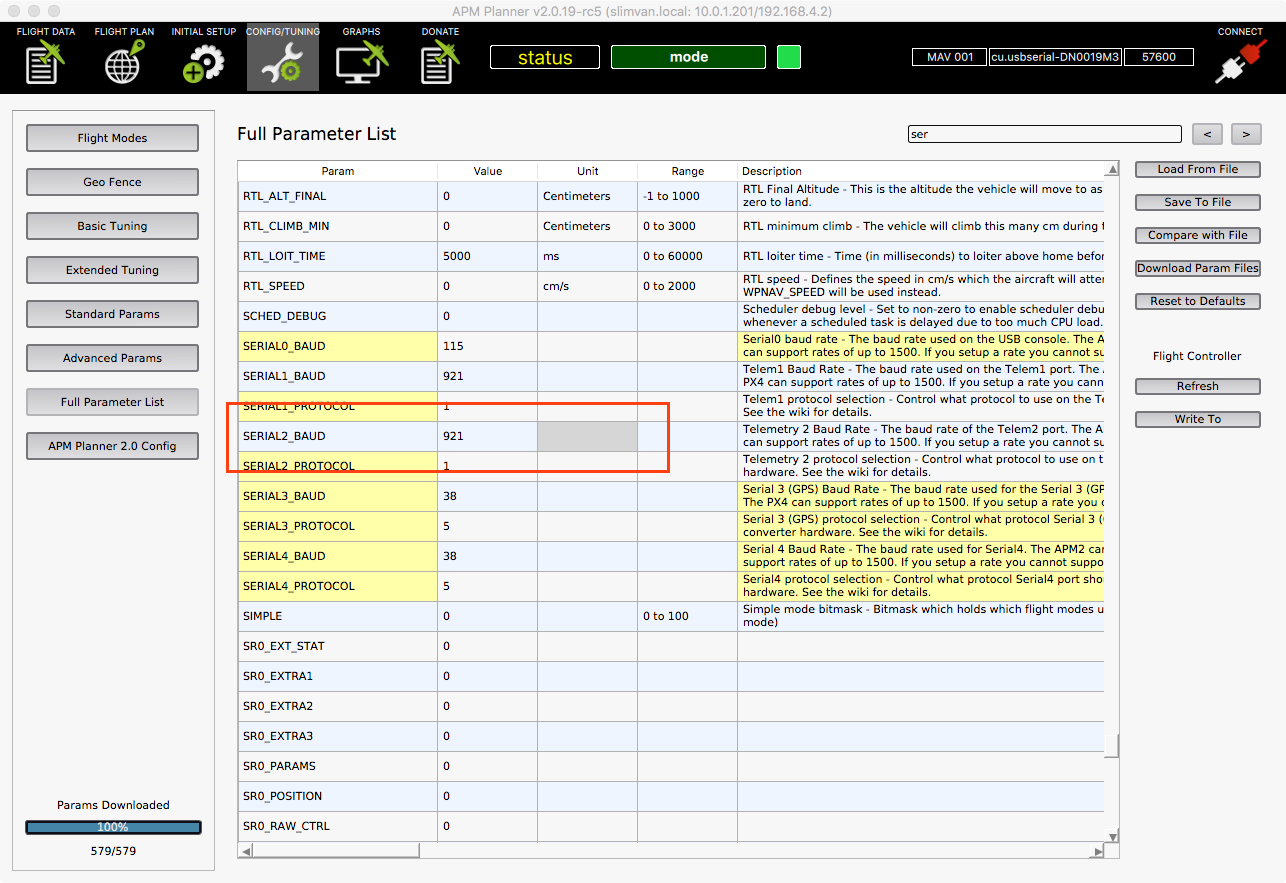

You can do this by connecting using Mission Planner or APM Planner 2.0
ESP8266 V1.0 Setup Baud

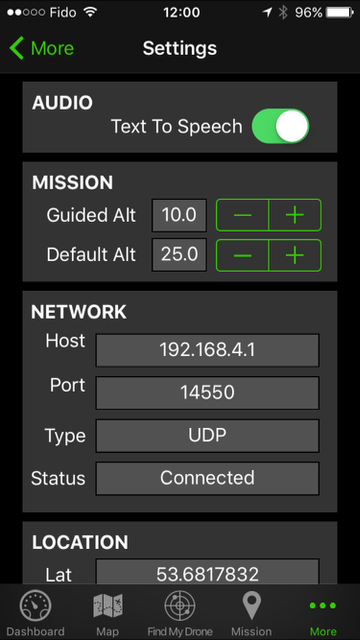

MAV Pilot Settings are 192.168.4.1:14550 UDP
MAV Pilot Settings
